Gabion mattresses & River mattresses & Reno mattresses

Gabion Mattresses and Reno Mattresses are a flexible hexagonal woven mesh system, which have many advantages over block walls, reinforced concrete or concrete mattresses. Since they are flexible, a gabion mattress can deform to differential settlements, while maintaining their functionality.

The lacing proceedure of a gabion mattress ensures that the unit acts as one structure. Both gabion baskets and reno mattresses are able to easily dissipate water through the structure without build up of water pressure.

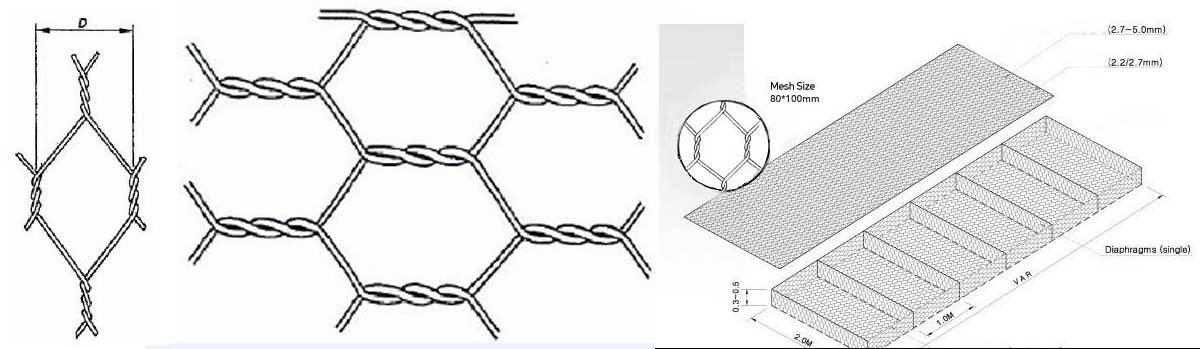

The configuration is of double twisted hexagonal woven mesh, which will not unravel. Both gabion baskets and gabion mattresses come standard with zinc galvanizing and can also be ordered with an additional PVC coating for installation where there is constant water. A gabion type structure is an environmentally friendly solution, since vegetation may easily establish, in time re-creating the pro-existing environment.

Reno mattresses are divided into cells by means of internal diaphragms positioned 1 m centers. Since the nature of a mattress is flexible, they are commonly used for permanent erosion control in channels, riverbanks and slope stabilization.

Gabion mattresses are Hexagonal mesh open such as 60x80mm 80x120mm 100x120mm 120x140mm 140x160mm 160x180mm 180x200mm etc.

Used galvanized steel wire  2.2x2.2x2.7mm 2.2x2.7x3.4mm 2.2x3.05x3.4mm and pvc coated galvanized wire 2.2/3.2 x2.2/3.2x2.7/3.7mm, 2.2/3.2 x2.7/3.7x3.4/4.4mm, 2.2/3.2 x3.05/4.05x3.4/4.0mm etc. And other sizes Such as : 2.0mm 2.2mm 2.4mm 2.7mm 3.0mm 3.2mm 3.4mm 3.9mm etc.

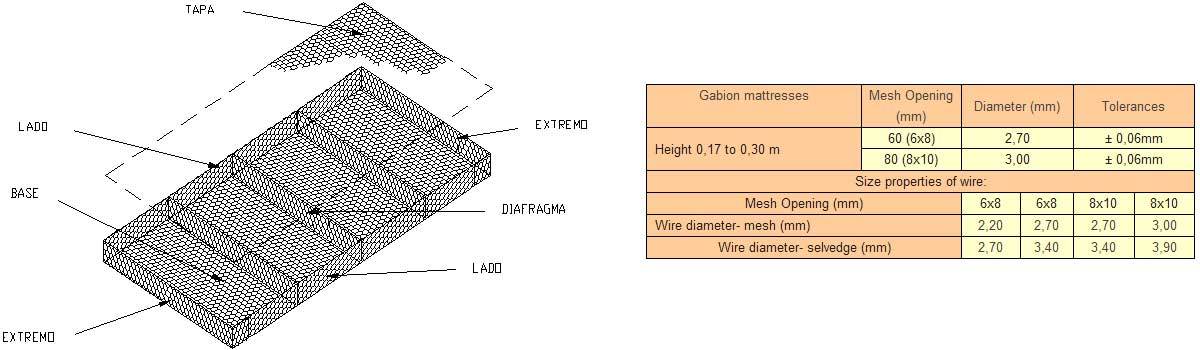

Gabion baskets are available in a variety of different sizes. They come in 0.17m\ 0.23m\ 0.30meter high, and 3, 4, 5 or 6 meters long.  Such as 4x2x0.17m 4x2x0.23m 4x2x0.3m 6x2x0.17m 6x2x0.23m 6x2x0.3m etc. With single diaphragm or double diaphragms see the following picture:
