Military defensive barrier
Military defensive barrier used for Military Sand Wall, Defensive Fencing Bastion Wall .
Keywords
Military defensive barrier
Category
Product Details
Military defensive barrier used for Military Sand Wall, Defensive Fencing Bastion Wall .

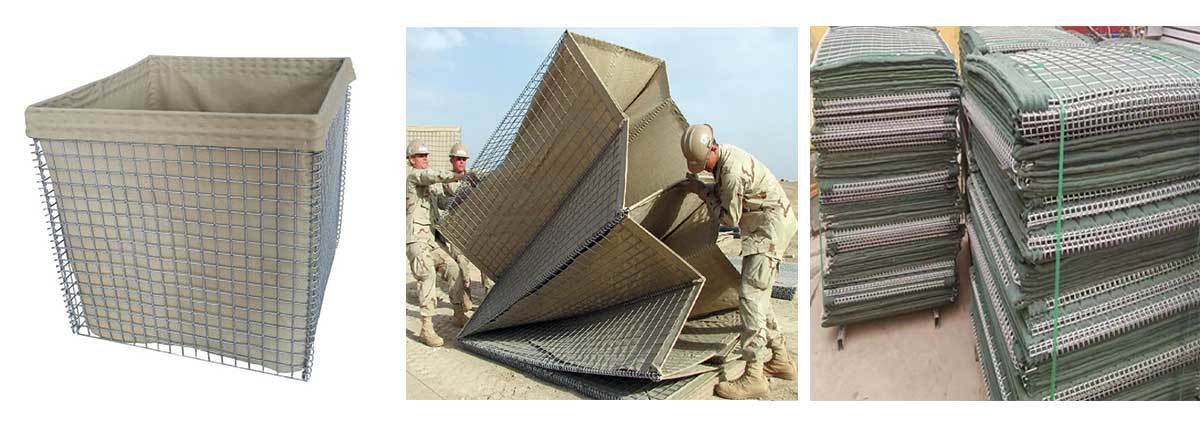

Description of Military Sand Wall:
Military Sand Wallis, Military defensive barrier become more popular,
because its Outstanding contribution for flood-prone areas along the River, Military Defence and Hotel Protection.
Military Sand Wall, Military defensive barrier has Low-Cost and High-Quality. It is assembled with Hot Dipped Galvanized wire and Geo textile by Helical spring and Joint Pin, which is can block explosion and flood in wide range, Also can as the shooting range in military.
Quick View of Military Sand Wall, Military defensive barrier
Material : Low-carbon steel wire
Wire Diameter :4.0-5.0mm
Spring Diameter :4.0-4.5mm
Mesh Hole :76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geo textile :In heavy duty non-woven polypropylene.
Finish :Hot Dipped Galvanized after /before welding, Galfan Coated before welding
The Common Specification of Military Sand Wall, Military defensive barrier was followed:
|
MODEL |
Height |
Width |
Length |
NO. of Cells |
|
MW-1 |
4'6"(1.37M) |
3'6"(1.06M) |
32'(10M) |
9 cells(1*4, 1*5) |
|
MW-2 |
7'(2.1M) |
3'6"(1.06M) |
108'(33M) |
30 cells(6*5) |
|
MW-3 |
2'(0.61M) |
2'(0.61M) |
4'(1.21M) |
2 cells |
|
MW-4 |
3'3"(1.0M) |
3'3"(1.0M) |
32'(10M) |
10 cells(2*5) |
|
MW-5 |
2'(0.61M) |
2'(0.61M) |
10'(3.05M) |
5 cells |
|
MW-6 |
5'6"(1.68M) |
2'(0.61M) |
10'(3.05M) |
5 cells |
|
MW-7 |
7'3"(2.21M) |
7'(2.13M) |
90'(27.74M) |
13 cells(2*4,1*5) |
|
MW-8 |
4'6"(1.37M) |
4'(1.22M) |
32'(10M) |
9 cells(1*4, 1*5) |
|
MW-9 |
3'3"(1.0M) |
2'6"(0.76M) |
30'(9.14M) |
12 cells(2*6) |
|
MW-10 |
7'(2.12M) |
5'(1.52M) |
95'(30.5M) |
20 cells(4*5) |
|
MW-11 |
3'3"(1.0M |
3'3"(1.0M) |
3'3"(1.0M) |
1 Cell |
|
MW-12 |
7'3"(2.21M) |
7'3"(2.21M) |
7'3"(2.21M) |
1 Cell |
Military Sand Wall, Military defensive barrier Application:
1. Flood Control.
Most of People used as the bulwark all over the river, unfold it and filled with sand, replace sandbags, it is easy to operate and efficacious.
2. Military Defence
Most of army used for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroyed.
3. Hotel Protection
A lot of Superior Hotel used as the protection wall outside, safety, and beautiful.
