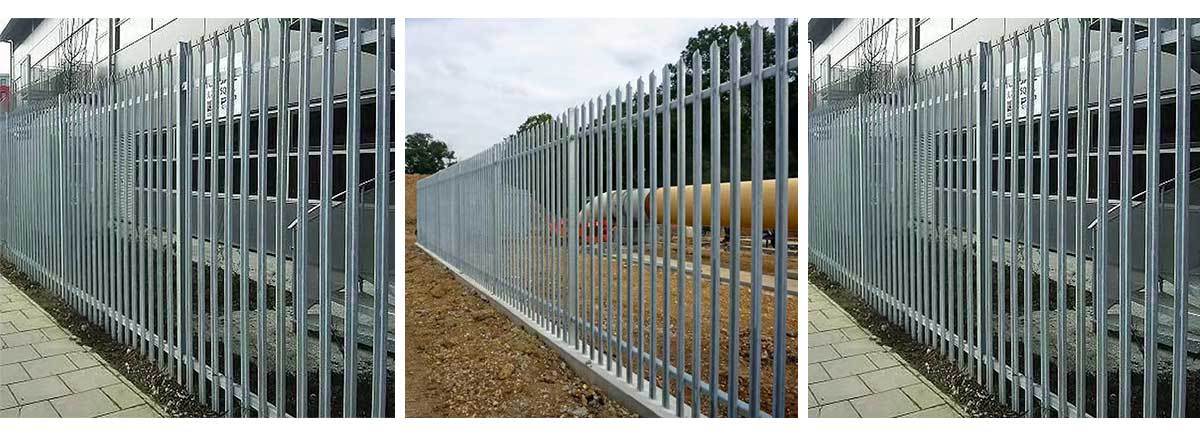

Palisade fence panels

Most useful vertical type of pales for palisade fencing, which is always the customers' first choice for pales .

Keywords

Product Details

Pales-"W" section
Most useful vertical type of pales for palisade fencing, which is always the customers' first choice for pales .

Pales-"D" section

Width	Thickness	Surface Treatment	Head	Height
68mm-70mm	2.0mm 2.5mm 3.0mm	Galvanized and Electrostatic polyester coated or Hot dipped galvanized	Single point Triple point	1200mm---3000mm

Compared with "W" profile pales, "D" profile is more economical.

Pale-Angle iron

Width	Thickness	Surface Treatment	Head	Height
60mm	2.0mm 2.5mm 3.0mm	Galvanized and Electrostatic polyester coated or Hot dipped galvanized	Single point Triple point	1200mm---3000mm

Its cost is similar with "D" profile ,but its structure is simpler than "D" profile.

Post- IPE Type

Width	Thickness	Surface Treatment	Head	Height
40x40	2.0mm 3.0mm	Galvanized and Electrostatic polyester coated or Hot dipped galvanized	Single point	1200mm---3000mm

As a connection pipe between the fence panels, IPE type is the most useful way.

Size	Thickness	Surface Treatment	Head	Height
100x55mm 100x68mm 120x74mm	3.5mm 4.0mm 4.5mm 5.0mm	Galvanized and Electrostatic polyester coated or Hot dipped galvanized	Cut sharp	On the fence height basis

Rail- Angle Iron
It is the connection between pales and IPE post, which make the fence as a whole panel.

Above are general specification,others are available.OEM IS ACCEPT.

Size	Thickness	Surface Treatment	Holes	Length
50x50 40x40	5.0mm 6.0mm	Galvanized and Electrostatic polyester coated or Hot dipped galvanized	With19 holes drilled on one edge side	2710mm
