Tecco mesh

Product Description
Tecco Mesh for Rockfall Protection
1.Product Description
Tecco Mesh, also named as Tecco Rockfall Protection System, Tecco slope Protection system, is made of high tensile galvanized steel wire with other components, such as wire rope anchor, boundary rope, specialized clips, sewing rope and spike plate. Tecco Mesh is widely used in rockfall barrier projects.

Compared with other rockfall barrier systems, the Tecco Mesh has two special advantages:
1) It's made of high carbon steel wire, which make it much more strong and stable than others, also with excellent anti corrosion ability.
2) Tecco Mesh system is much easier than other systems in assembling.

Specifications
1) High Tensile Strength Wire Mesh - TECCO Mesh With Mesh Edge Knotted
Wire Strength: 256 ksi (1770 N/mm2)
Wire Diameter: 0.125 inch ( 3mm ) (Other wire diameters is available)
Material: Galfan Wire (95% Zn / 5% Al coating) (or Heavily Zinc Coating ( ≥200g/m2)Or others.)
Coating: 0.41 oz/ft2 min,125g/m2
Mesh Aperture: 3.3"(83mm) x 5.6"(143mm)
Mesh Height: 0.43" (11mm)
Mesh Strength: 110-150 KN/m
2) Tecco Mesh Standard Roll:
Mesh Edge Knotted
Roll Width: 3.5m, 2.5m, 1m etc
Roll Length: 10m, 20m, 30m etc
Weight: 1.45kg/m2
3) Feature of Tecco Mesh:
1. Anti-corrosion  2. Easy to install   3. Don't need maintenance
4) TECCO Mesh Systerm:
Components
The TECCO system consists of four main components that are carefully coordinated with each other:
1). TECCO Steel Wire Mesh
TECCO mesh is made of high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.

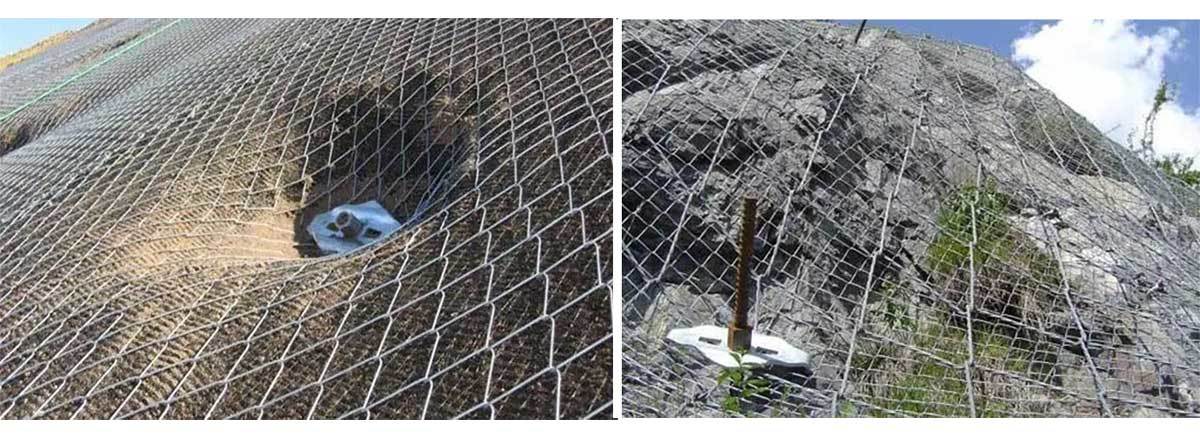

2). TECCO Spike Plates
Rigid spike plates that are reinforced with ribbing ensure optimal load transmission from soil or rock anchors to the TECCO mesh.
These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.
The plates are galvanized and have dimensions of 13.0''*7.5"*0.4"(330mm*190mm*10mm).
3). TECCO Connection Clips
The high-strength steel wire connection clips enable mesh sections to be joined without overlapping and still guarantee one hundred percent transfer of forces. These clips are hot dip galvanized and consist of 0.25"(6mm) thick steel spirals.
